Thor Motor Coach Technical Hub, Chassis Specs & Towing Calculator

Thor Motor Coach recreational vehicles encompass Class A, Class B, Class C, and Super C motorhomes built on Ford E-Series, F-53, Chevy 4500, and Freightliner chassis. Technical maintenance, towing limits, and onboard electrical systems require precise OEM load balancing and voltage verification.

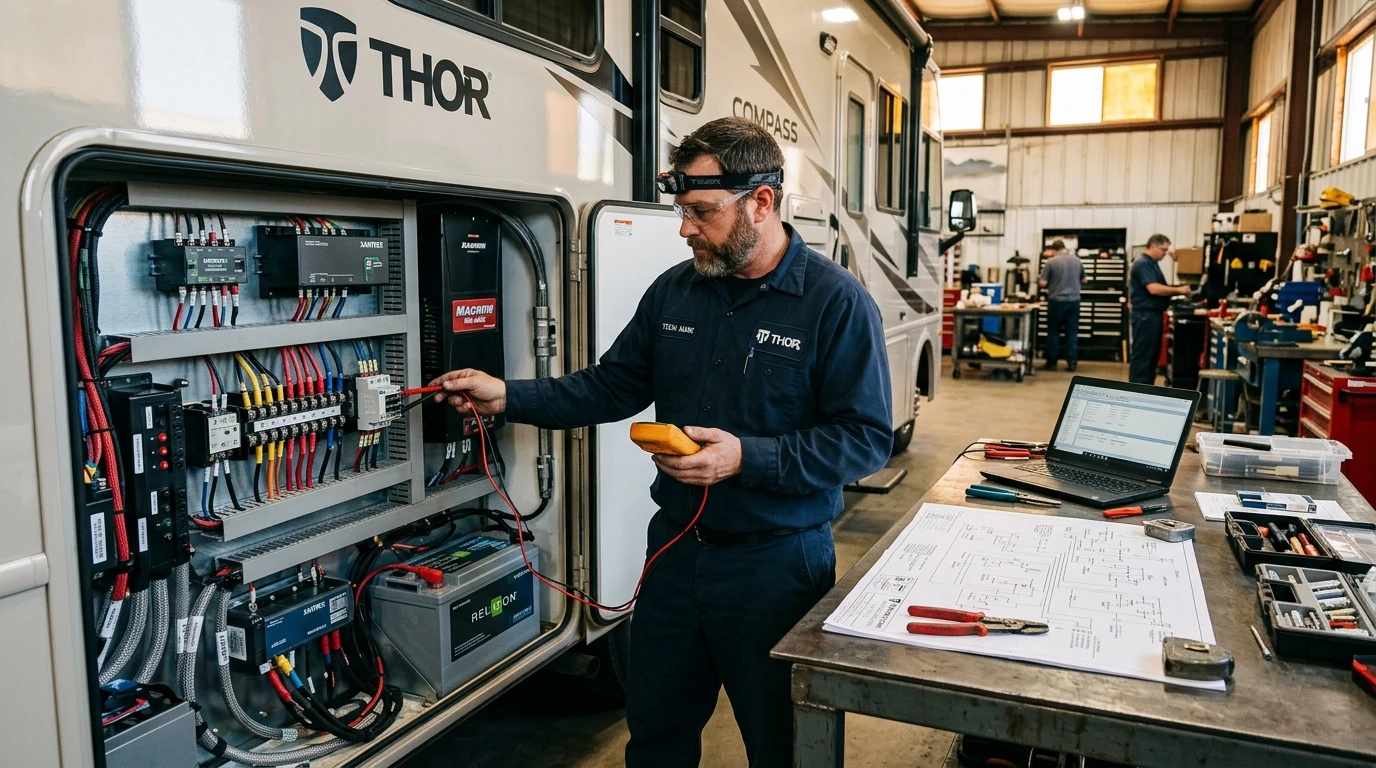

Thor Motor Coach Technical Hub & Diagnostic Bay — Thor Motor Coach chassis engineering and towing diagnostic bay.

TOOL-01 / STATUTORY CALC

Interactive RV Towing, Tongue Weight & Hitch Safety Engine

Max Tow5,000 lbs

Tongue Wt380 lbs

Safety StatusSAFE

Quick Factory Preset:

Coach Actual Gross Weight (GVW)[lbs]Actual scaled coach weight with passengers, fuel, and fresh water.

Gross Combined Weight Rating (GCWR)[lbs]Chassis manufacturer mechanical limit stamped on B-pillar door placard.

Hitch Receiver Gross Rating[lbs]Factory welded hitch crossmember stamped load rating.

Towed Trailer / Vehicle Weight[lbs]Total loaded weight of towed vehicle (toad), cargo trailer, or boat.

Tongue Weight Ratio10%

5% (Toad/Dolly)10-12% (Standard RV)15%+ (Heavy Cargo)

Max Allowable Tow Capacity

0lbs

min(Hitch, GCWR - GVW)

Calculated Tongue Weight

0lbs

Trailer GVW × Ratio

Remaining Tow Margin

0lbs

Safe cushion under limits

Hitch Tongue Safety Limit

0lbs

Rated 10% vertical rating

Mechanical Load Verification Dossier

STATUTORY MODELSAE J2807 Standard for Trailer Tow Performance & Federal Motor Vehicle Safety Standards (FMVSS No. 120)

SAE J2807 RV Towing & Hitch Margin Formula

Max Tow = min(Hitch_rating, GCWR − GVW)

Notation:Remaining Capacity = Max Tow - Trailer GVW; Tongue Weight = Trailer GVW * (Tongue % / 100)

Variable Definition & Units

GCWR

Gross Combined Weight Rating[lbs]

Maximum allowable gross combined mass of the motorhome and towed vehicle.

GVW

Actual Gross Vehicle Weight[lbs]

Scaled total operational weight of the motorhome including full fuel, water, cargo, and occupants.

Hitch

Receiver Class Rating[lbs]

Mechanical pull rating stamped on the integrated steel receiver hitch.

Tongue Wt

Vertical Ball Load[lbs]

Downward vertical load applied directly to the receiver ball shank.

Calibrated Example:

On a Ford E-450 chassis (GCWR: 18,500 lbs, Hitch: 5,000 lbs) weighing 12,500 lbs with a 3,800 lb trailer at 10% tongue: Max Tow = min(5,000, 6,000) = 5,000 lbs. Tongue Weight = 380 lbs. Remaining margin = +1,200 lbs (SAFE).

OEM DATABANK

Thor Motor Coach Model Family & Chassis Specification Selector

Comprehensive engineering database indexing all active Thor Motor Coach model families across Ford E-Series, F-53, RAM ProMaster, and Freightliner diesel architectures.

Model Name	Class	Chassis Architecture	Powertrain / Engine	GVWR (lbs)	GCWR (lbs)	Hitch (lbs)	Service
Four Winds 28Z30 ft	Class C	Ford E-450 Super Duty	7.3L V8 Godzilla Gas (325 HP, 468 lb-ft)	14,500	22,000	8,000	30-Amp
Chateau 31W32.2 ft	Class C	Ford E-450 Super Duty	7.3L V8 Godzilla Gas (325 HP, 468 lb-ft)	14,500	22,000	8,000	30-Amp
Hurricane 34J35.7 ft	Class A	Ford F-53 Super Duty	7.3L V8 Godzilla Gas (335 HP, 468 lb-ft)	22,000	26,000	8,000	50-Amp
A.C.E. 30.331 ft	Class A	Ford F-53 Super Duty	7.3L V8 Godzilla Gas (335 HP, 468 lb-ft)	18,000	23,000	8,000	30-Amp
Palazzo 33.234.8 ft	Class A Diesel	Freightliner XC-S Straight Rail	Cummins ISB 6.7L Turbo Diesel (340 HP, 700 lb-ft)	26,000	30,000	10,000	50-Amp
Outlaw 38KB39.8 ft	Class A Toy Hauler	Ford F-53 Super Duty	7.3L V8 Godzilla Gas (335 HP, 468 lb-ft)	26,000	30,000	8,000	50-Amp
Vegas 24.125.5 ft	Class A RUV	Ford E-350 Chassis	7.3L V8 Godzilla Gas (325 HP, 468 lb-ft)	12,500	18,500	8,000	30-Amp
Axis 24.125.5 ft	Class A RUV	Ford E-350 Chassis	7.3L V8 Godzilla Gas (325 HP, 468 lb-ft)	12,500	18,500	8,000	30-Amp
Quantum KW2931 ft	Class C	Ford E-450 Super Duty	7.3L V8 Godzilla Gas (325 HP, 468 lb-ft)	14,500	22,000	8,000	30-Amp
Gemini 23TE23.6 ft	Class B+	Ford Transit AWD Chassis	3.5L V6 EcoBoost Twin-Turbo (310 HP, 400 lb-ft)	11,000	15,000	5,000	30-Amp
Compass 23TW23.6 ft	Class B+	Ford Transit AWD Chassis	3.5L V6 EcoBoost Twin-Turbo (310 HP, 400 lb-ft)	11,000	15,000	5,000	30-Amp
Tuscany 40DX41.2 ft	Class A Luxury Diesel	Freightliner XC-R Raised Rail	Cummins ISL 8.9L Turbo Diesel (450 HP, 1250 lb-ft)	38,600	48,600	15,000	50-Amp
Venetian B4242.8 ft	Class A Luxury Diesel	Freightliner XC-R Raised Rail	Cummins ISL 8.9L Turbo Diesel (400 HP, 1250 lb-ft)	38,320	48,320	15,000	50-Amp
Aria 390139.9 ft	Class A Diesel	Freightliner XC-R Raised Rail	Cummins ISB 6.7L Turbo Diesel (360 HP, 800 lb-ft)	35,320	45,320	10,000	50-Amp
Miramar 35.237 ft	Class A	Ford F-53 Super Duty	7.3L V8 Godzilla Gas (335 HP, 468 lb-ft)	22,000	26,000	8,000	50-Amp
Windsport 34J35.7 ft	Class A	Ford F-53 Super Duty	7.3L V8 Godzilla Gas (335 HP, 468 lb-ft)	22,000	26,000	8,000	50-Amp
Challenger 37YT39.1 ft	Class A	Ford F-53 Super Duty	7.3L V8 Godzilla Gas (335 HP, 468 lb-ft)	24,000	30,000	8,000	50-Amp
Pasadena SV3435.8 ft	Super C	Freightliner S2RV Custom Chassis	Cummins B6.7 Turbo Diesel (360 HP, 800 lb-ft)	29,000	41,000	12,000	50-Amp
Omni XG32 4x433.7 ft	Super C 4x4	Ford F-550 4x4 Chassis	Power Stroke 6.7L V8 Turbo Diesel (330 HP, 825 lb-ft)	19,500	40,000	12,000	50-Amp
Magnitude BT36 4x437.8 ft	Super C 4x4	Ford F-550 4x4 Chassis	Power Stroke 6.7L V8 Turbo Diesel (330 HP, 825 lb-ft)	19,500	40,000	12,000	50-Amp
Tellaro 20L21.1 ft	Class B Camper Van	RAM ProMaster 3500 Window Van	3.6L Pentastar V6 Gas (276 HP, 250 lb-ft)	9,350	11,500	3,500	30-Amp
Sequence 20K21.1 ft	Class B Camper Van	RAM ProMaster 3500 Window Van	3.6L Pentastar V6 Gas (276 HP, 250 lb-ft)	9,350	11,500	3,500	30-Amp

Gross Combined Weight Rating (GCWR) vs Gross Vehicle Weight (GVW) Tolerances

Recreational vehicle towing safety requires strict adherence to chassis-level mathematical limits rather than nominal hitch ratings. A common failure point in motorhome towing is the assumption that an 8,000-pound hitch receiver guarantees the legal capacity to tow an 8,000-pound cargo trailer. Under federal mechanical guidelines, the towing ceiling is governed by the Gross Combined Weight Rating (GCWR), representing the combined mass of the coach, fluids, cargo, occupants, and the towed vehicle.

22,000 lbsFord E-450 GCWR CeilingAbsolute maximum combined chassis and trailer limit.

14,500 lbsMaximum Coach GVWRCertified upper limit for coach, fluid, cargo, and passengers.

7,500 lbsNet Legal Towing ReserveTrue towing capacity when coach is fully loaded to GVWR.

On modern Thor Class C motorhomes constructed upon the Ford E-450 Super Duty cutaway chassis (such as Four Winds 28Z and Chateau 31W), or Class A coaches on the Ford F-53 (including Hurricane 34J, A.C.E. 30.3, and Palazzo 33.2), the GCWR is specified from 18,500 to 26,000 pounds. For compact Class B motorhomes on Chevy 4500 Chassis or Mercedes-Benz Sprinter 3500 (Vegas 24.1, Axis 24.1, Gemini 23TE, Quantum KW29), Gross Vehicle Weight Rating (GVWR) determines maximum axle load.

Ford 7.3L V8 Godzilla Torque Specs & Axle Ratios

Propelling Thor Class A gas flagships (Hurricane 34J, Miramar, Outlaw 38KB) and Class C motorhomes is Ford's 7.3L V8 Godzilla overhead-valve pushrod engine. On the commercial Ford F-53 stripped motorhome chassis and Ford E-350 Chassis, the engine delivers 335 horsepower at 3,750 RPM and 468 lb-ft of torque at 3,900 RPM through the TorqShift 6-speed automatic transmission. For heavy Super C platforms, the Freightliner S2RV with Cummins B6.7 diesel supplies up to 800 lb-ft of torque for maximum towing capacity.

Ford E-350 / E-450 Super Duty

Class C Cutaway standard with 55-gallon fuel capacity, 8,000 lb hitch, and dual rear wheels.

Ford F-53 Stripped Chassis

Class A Gas standard with 16,000 to 26,000 lb GVWR, 19.5" or 22.5" wheels, and Bilstein steering dampers.

Freightliner S2RV / Cummins

Super C front-engine diesel chassis rated at 29,000 lb GVWR with 12,000 lb towing receiver.

Before embarking on extended hauls, review Thor motor coach wiring diagrams and electrical pinouts to ensure proper 7-way blade connector pinout signals for electric trailer brakes and auxiliary battery charge lines. For waste capacity management during dry camping, consult the RV macerator pump and waste tank calculator, and verify chassis inspection checkpoints within our seasonal RV maintenance schedule and roof specs.

FIELD TROUBLESHOOTING

Emergency Diagnostic Triage for Thor RV Systems

Immediate field isolation protocols for common Thor Motor Coach electrical and chassis lockouts.

FAULT 01

Automatic Transfer Switch (ATS) Contactor Lockout

Generator is running with 120V AC output at the Onan breaker, but no AC utility power reaches the coach distribution panel.

Field Protocol: De-energize generator. Disconnect shore cord. Inspect internal time-delay board inside transfer switch box. Verify 20-30 second coil delay has not failed.

FAULT 02

Battery Isolation Manager (BIM) Bidirectional Lockout

Chassis alternator fails to charge house LiFePO4 / AGM battery bank during highway transit, or coach converter fails to maintain engine starter battery.

Field Protocol: Test yellow 16 AWG ignition terminal on BIM 160/225 solenoid. Verify 12V switched ignition voltage is present with engine running.

FAULT 03

12V DC Master Battery Disconnect Latch Failure

Use/Store or Master Battery switch clicked to 'USE', but all 12V DC cabin lights, slide controls, and water pump circuits remain unpowered.

Field Protocol: Locate Intellitec or Trombetta latching relay near house battery bay. Test for 12V momentary trigger signal across control terminals. Check high-amperage 12V DC breaker.

ENGINEERING FAQ

Frequently Answered Questions About Thor Motor Coach RVs

What is the towing capacity of a Thor Motor Coach Class C motorhome?

Thor Class C motorhomes built on the Ford E-450 Super Duty chassis typically carry a hitch receiver rating of 8,000 lbs with a Gross Combined Weight Rating (GCWR) of 22,000 lbs. Actual towing capacity is constrained by the mathematical delta between your loaded Gross Vehicle Weight (GVW) and the GCWR.

How does GCWR restrict towing when GVWR is fully loaded?

Gross Combined Weight Rating (GCWR) is the absolute mechanical ceiling for coach, passengers, fluids, trailer, and cargo combined. If a coach with a 22,000 lb GCWR is loaded to its maximum 14,500 lb GVWR, the maximum legal and safe towing capacity drops to 7,500 lbs (22,000 - 14,500), regardless of whether the hitch is rated for 8,000 lbs.

What engine powers Thor Class A and Class C gas motorhomes?

Modern Thor Class A (such as Hurricane and Miramar on the Ford F-53) and Class C motorhomes (Four Winds and Chateau on Ford E-450) are powered by the Ford 7.3L V8 Godzilla pushrod gasoline engine delivering 325 to 335 HP and 468 lb-ft of torque paired with the TorqShift 6-speed automatic transmission.
